CV 6003C

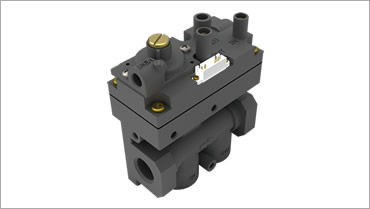

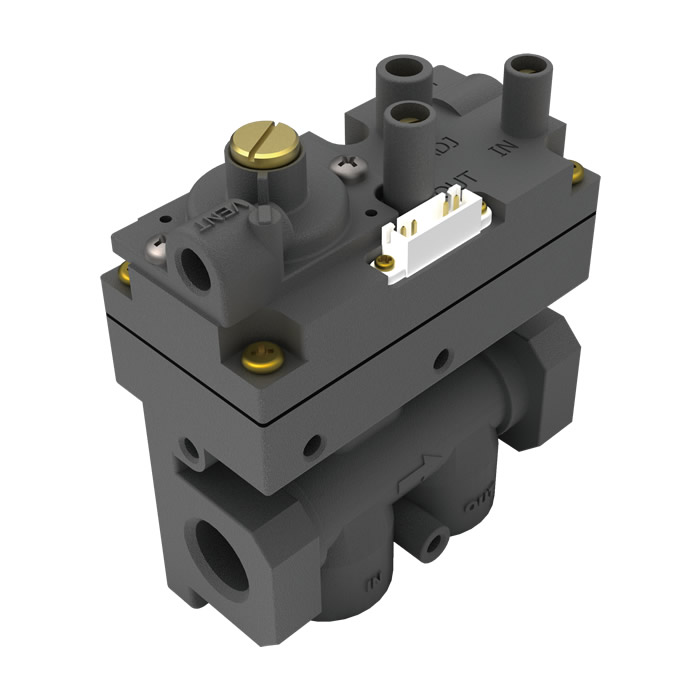

Contronik Combination Gas Control CV 6003C



Contronik Combination Gas Control CV 6003C

Features:

- Solenoid operated pilot valve and burner valve

  by normal control or through remote handset for flame ignition.

- Diaphragm-operated second automatic valve opens under

  control of regulator; closes if gas or power supply is interrupted.

- Fixed pressure regulator for ON-OFF operation

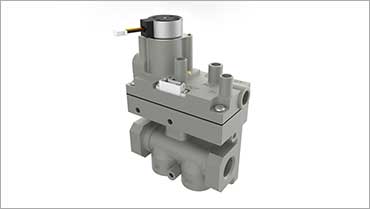

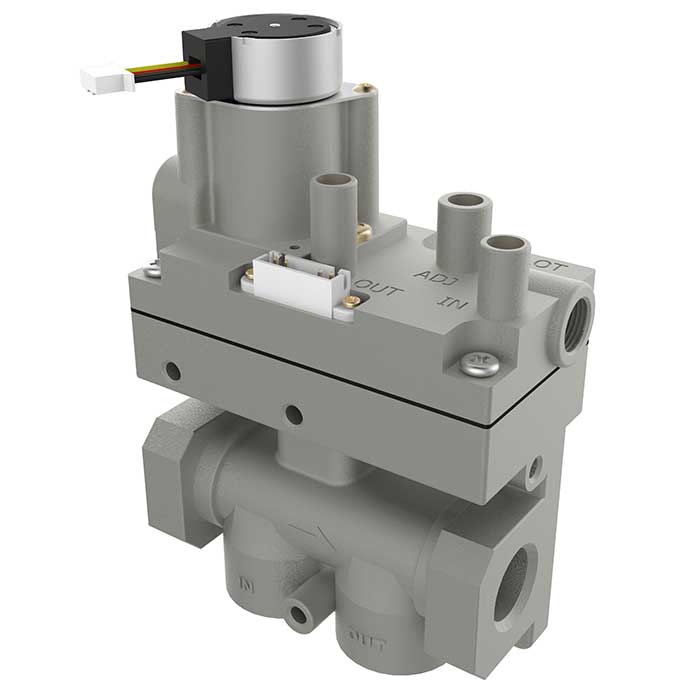

  or Stepping Motor Pressure Regulator.

- Pilot outlet flow adjustment

- Burner outlet pressure adjustment

- Outlet Pressure Adjustment Range:

  NG 1"~4" W.C. / LPG 4"~10" W.C.
- Maximum Inlet Pressure: 35 mbar

- Flow Capacity (1" W.C. Pressure Drop):

  NG: 50,000 BTU/hr / LPG: 80,000 BTU/hr

- Operating Temperature: -23°C~80°C
