CV 910

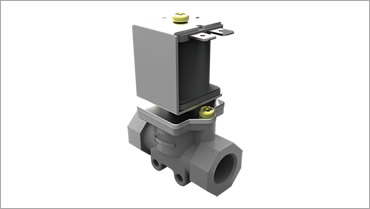

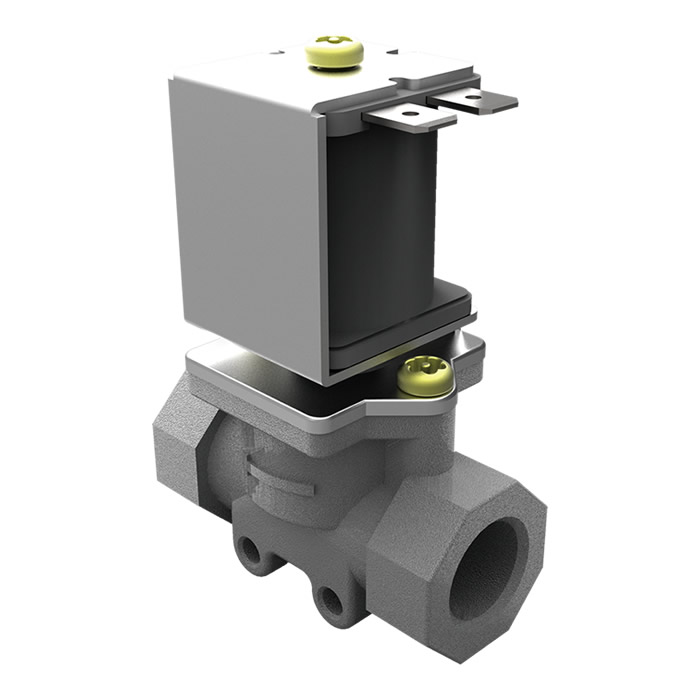

 Contronik Solenoid Control CV 910



Features:

- Single Inlet & Outlet

- Magnetically operated, normally closed

-Instantaneous operate when electric power energize ≦ 1 sec

- When electric power failure, valve closes ≦ 1 sec

- Mounting in any position, in pipe or on bracket

- Maximum Inlet Pressure: 35 mbar ~ 50 mbar

- Flow Capacity (1" W.C. Pressure Drop):

  Single Outlet: 65,000 BTU/hr

- Operating Temperature: 0°C~145°C

- Customization:

.Solenoid coil operation AC/DC voltage

.Gas inlet and outlet thread dimension
