CV 931C

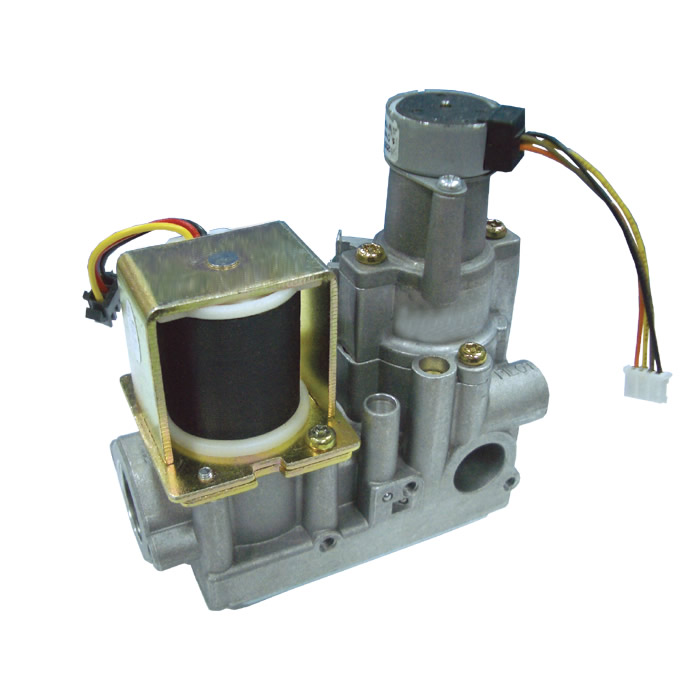

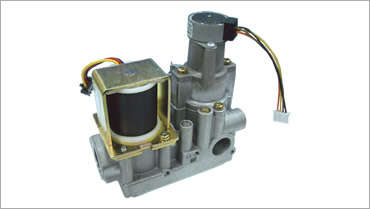

Contronik Combination Gas Control CV 931C



Features:

- Two automatic solenoid shut-off valves with stepping motor

  omodulation on the second automatic valve.

- Solenoid operated pilot valve and burner valve

   by normal control or through remote handset for flame ignition.

- Pilot outlet flow adjustment

- Main outlet pressure adjustment

- Outlet Pressure Adjustment Range:

  NG 1.7"~3.5" W.C. / LPG 5.5"~10" W.C.

- Maximum Inlet Pressure: 35 mbar
- Flow Capacity (1" W.C. Pressure Drop):

  NG: 40,000 BTU/hr / LPG: 62,000 BTU/hr

- Operating Temperature: -40°C~80°C
