CV 970H

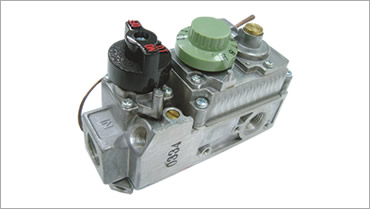

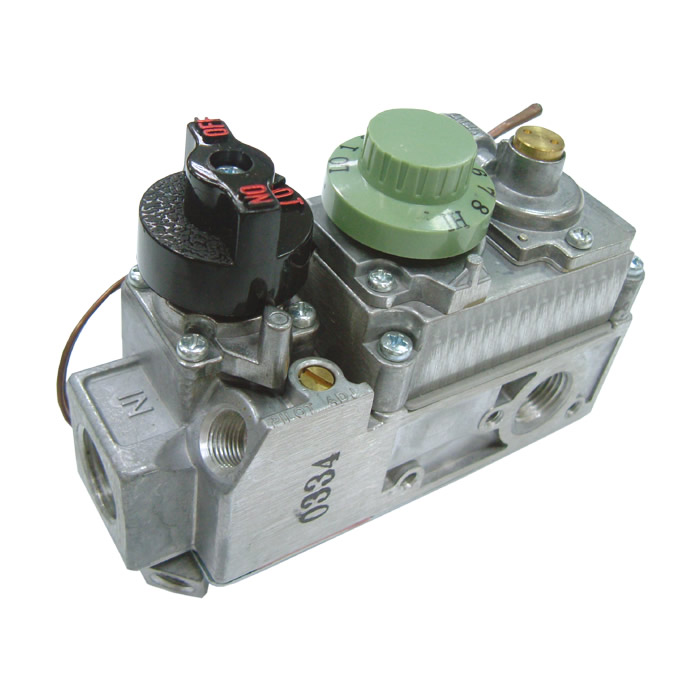

Contronik Combination Gas Control CV 970H



- Include manual valve single operating knob (OFF, Pilot, ON)

  and thermoelectric flame detection device.

- ON-OFF thermostat and temperature setting knob

  for thermostatic function.

- Fixed pressure regulator for ON-OFF operation

- Pilot outlet flow adjustment

- Burner outlet pressure adjustment

- Outlet Pressure Adjustment Range:

  NG 2"~5" W.C. / LPG 9"~12" W.C.
- Maximum Inlet Pressure: 35 mbar

- Flow Capacity (1" W.C. Pressure Drop):

  40,000 BTU/hr

- Operating Temperature: -23°C~80°C

- Temperature Senor Range: 15°C~38°C
