CV 983

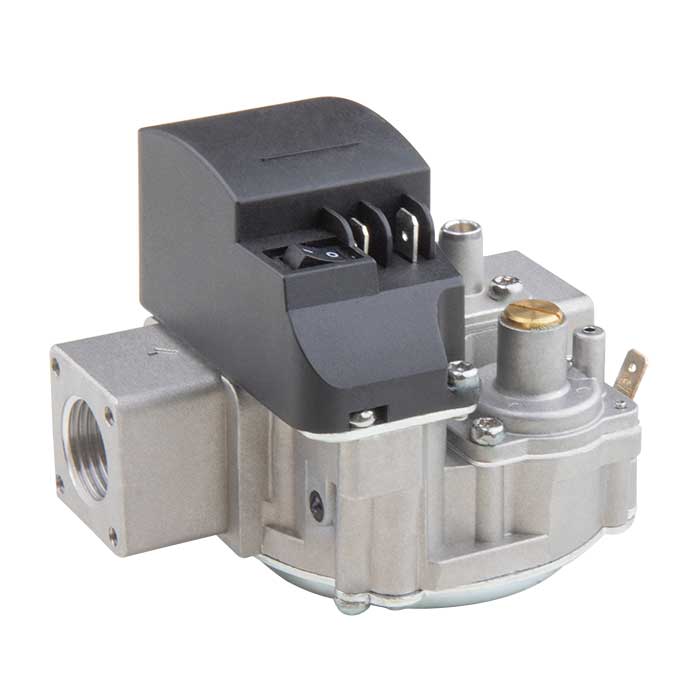

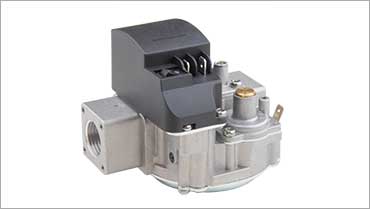

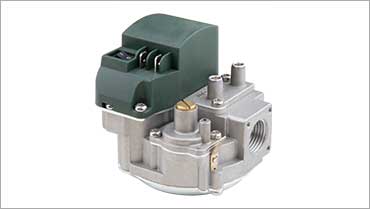

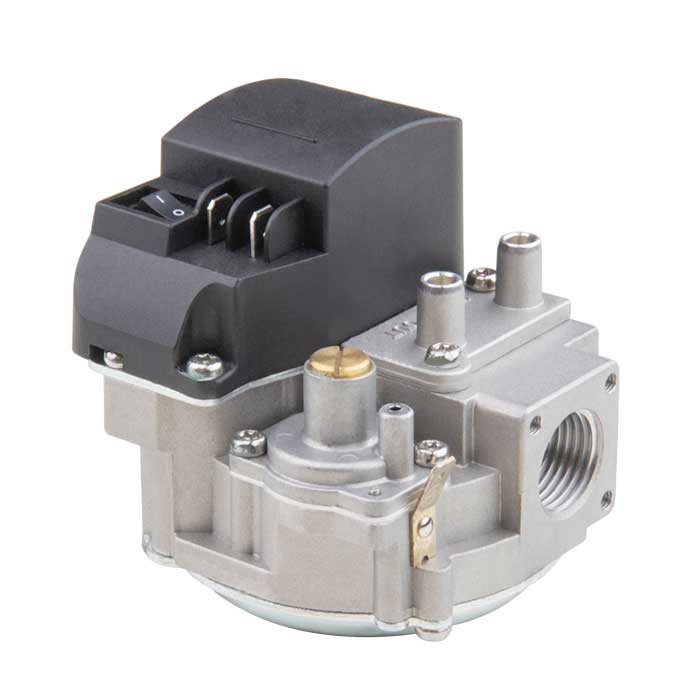

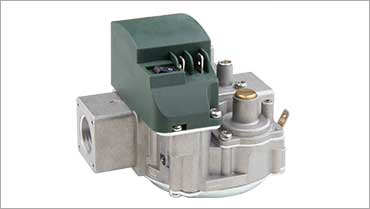

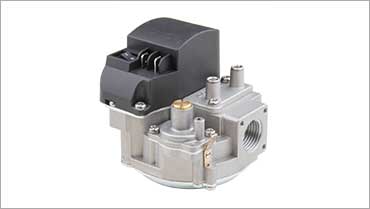

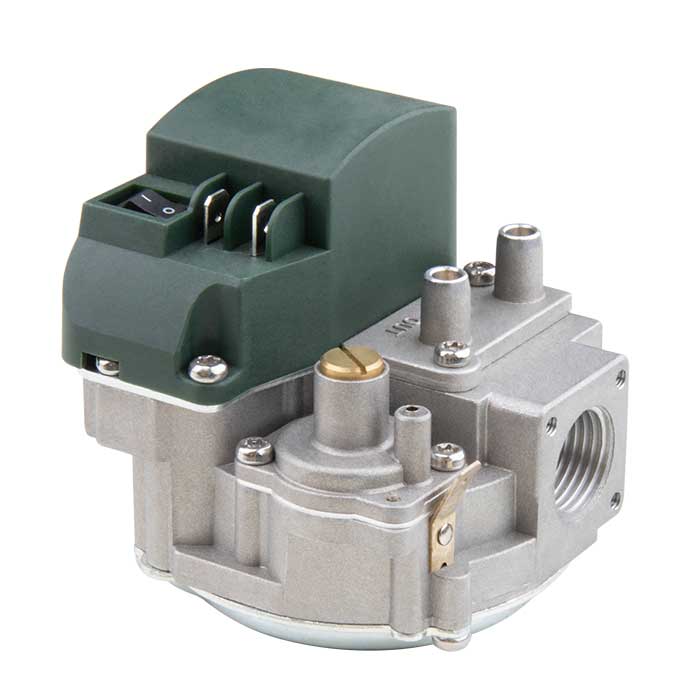

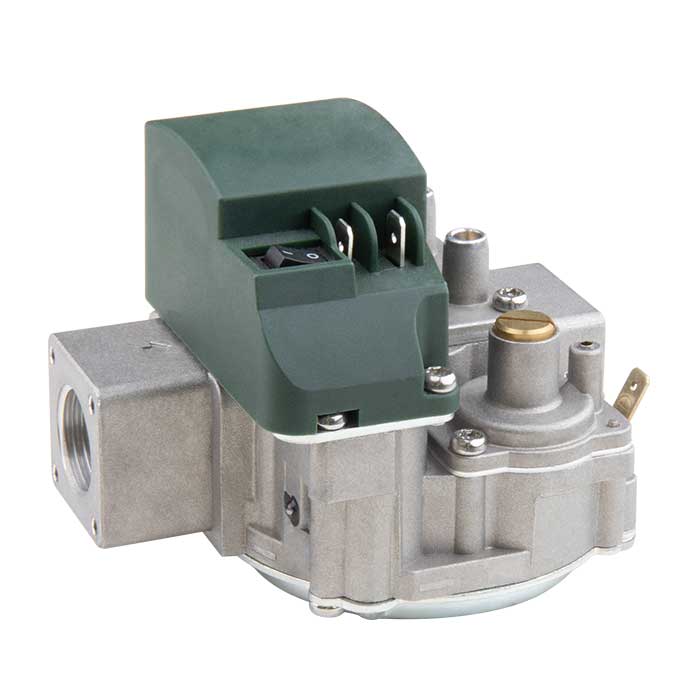

Contronik Combination Gas Control CV 983



Features:

- Combination gas control include a ON-OFF switch

  for safety shut-off.

- Solenoid operated safety valve and burner valve

  by normal control for flame ignition.

- Two automatic solenoid shut-off valves with safety valve

  sequencing function for direct burner ignition operation.

- Servo pressure regulator

- Main outlet pressure adjustment

- Outlet Pressure Adjustment Range:

  NG 2.5"~3.5" W.C. / LPG 8"~12" W.C.

- Maximum Inlet Pressure: 35 mbar
- Flow Capacity (1" W.C. Pressure Drop):

  NG: 140,000 BTU/hr / LPG: 210,000 BTU/hr

- Operating Temperature: -10°C~80°C
