CV 970BM & CV 970BA

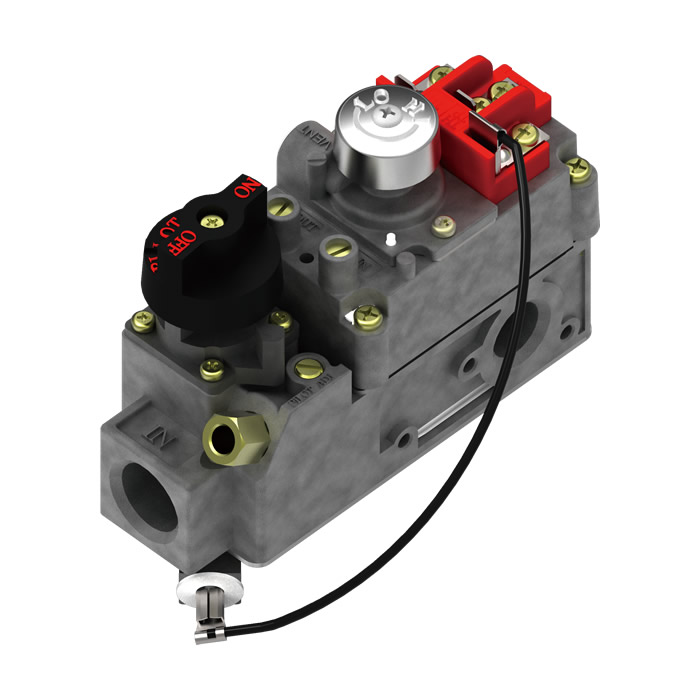

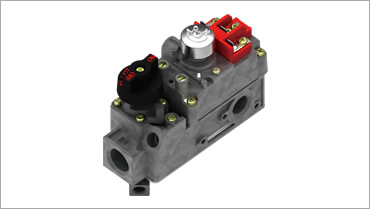

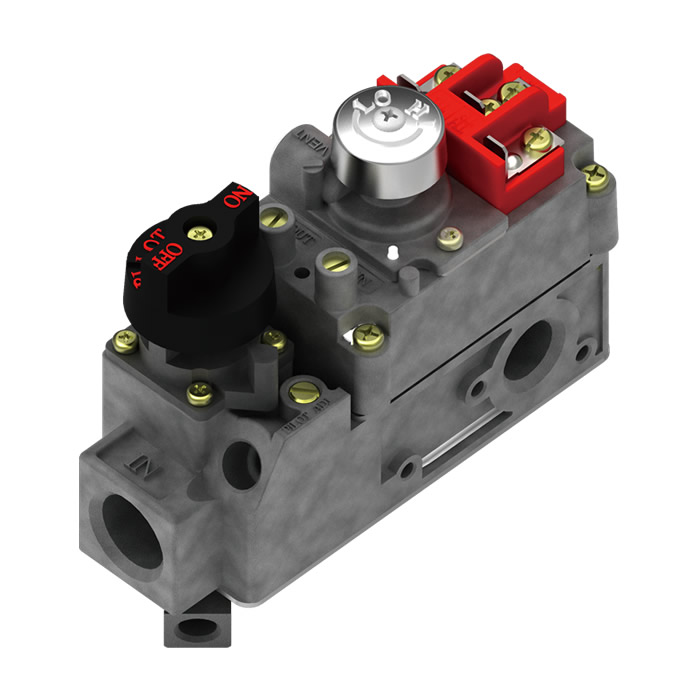

 Combination Gas Control CV 970BM

CV 970BM

 Combination Gas Control CV 970BM

CV 970BM

 Contronik Manual Modulation CV 710

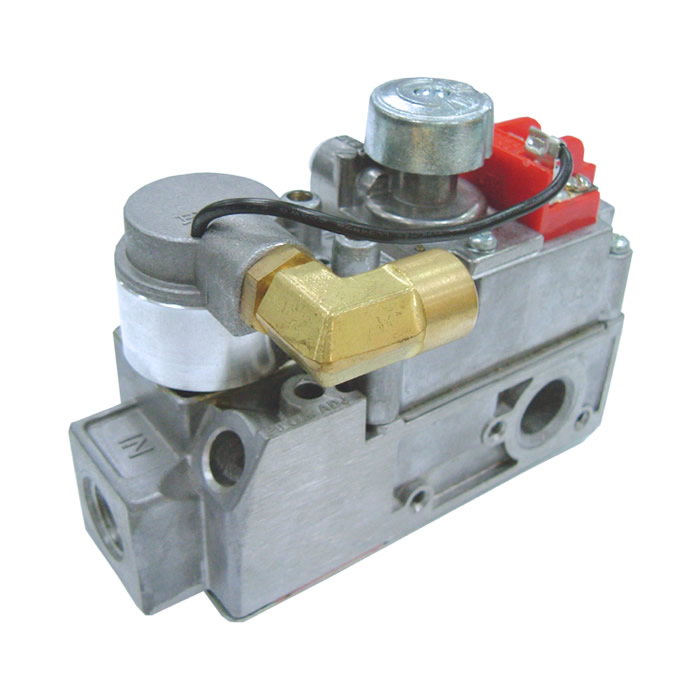

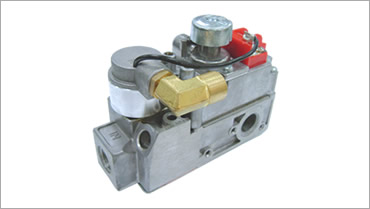

CV 970BA

Features:

- Include manual valve single operating

  knob (OFF, Pilot, ON) and operating

  knob (High-Low) modulation.

- Require the use of thermopile /

  thermocouple which heated by the pilot

  burner flame, provides the electric

  power to operate the combination

  gas control.

- Safety shut-off on pilot flame failure

- Pilot outlet flow adjustment

- Burner outlet pressure adjustment

- Outlet Pressure Adjustment Range:

  ‧NG 2"~5" W.C.

  ‧LPG 9"~12" W.C.

- Maximum Inlet Pressure: 35 mbar

- Flow Capacity (1" W.C. Pressure Drop):

  40,000 BTU/hr

- Operating Temperature: -23°C~80°C

- CV 970BM – High-Low modulation

- CV 970BA – Solenoid operated pilot

  valve by normal control or through

  remote handset for flame ignition.

  Manual control for burner valve

  with High-Low modulation.
